Four-layer glass processing machine laminating machinery price

I. Product DescriptionTechnical parametersMachine modelFD-J-4-4Rated power58KWProcessing glass sizeMax. glass size: 2200x3660mm X 4 layerMax. glass thickness: 40mmFloor spaceL*W: 4020*10500mmVoltage220-440V 50-60Hz 3-phase ACNet Weight4100KGSOperation systemSiemens PLCWorking temperature90 degrees--140 degreesEfficiency90-1

Featured Products

I. Product Description

Glass Processing Machine Laminating Machinery Price with Four-Layer

Technical parameters

Machine model

FD-J-4-4

Rated power

58KW

Processing glass size

Max. glass size: 2200x3660mm X 4 layer

Max. glass thickness: 40mm

Floor space

L*W: 4020*10500mm

Voltage

220-440V

50-60Hz 3-phase AC

Net Weight

4100KGS

Operation system

Siemens PLC

Working temperature

90 degrees--140 degrees

Efficiency

90-120min/cycle

Max production capacity: 96 Sq.m/cycle


II. Company Information

1.About us

Glass Processing Machine Laminating Machinery Price with Four-Layer

Fangding Technology Co., Ltd is a high-tech enterprise which was founded in October 2003, located in Taoluo industrial park , Donggang district, Rizhao city, covering an area of more than 20,000 square meters, with a registered capital of 100 million yuan,specializing in developing ,manufacturing and selling the laminated glass equipment and the interlayer films,the The main products are EVA laminated glass machine,Heat Soak Furnace, Smart PVB  glass laminating line and EVA,TPU,SGP films.
At present, the company has D1, D2 pressure vessel production license, has obtained the ISO 9001 quality management system certification,the products have obtained the European Union CE certification, Canada CSA certification and Germany TUV certification,it has the independent export permission and successively awarded the high-tech enterprise, gazelle enterprise of Shandong province, famous brand in shandong province, and others more than 30 honorary title.
The company participated in the world glass industry well-known exhibitions every year, such as Germany Dusseldorf international glass industry exhibition, China international glass industry technology exhibition, China international window and curtain wall exhibition, Italy Milan international glass industry exhibition, the Middle East (Dubai) international glass exhibition, the United States Atlanta international window and curtain wall exhibition and other exhibitions. During the exhibition ,through the on-site processing of the laminated glass ,Fangding presented its unique design style and manufacturing process to the customers!
The company has a large number of skilled senior technical personnel and experienced management personnel, established cooperation with many scientific research institutions ,has been committing to provide full set of solutions of the glass laminating for the deep-processing enterprises ;the company has reached co-operations with many global top 500companies.
In the international market, the products has been exported to Asia, Europe, America and other more than 60 countries and regions .Be responsible for the customers and develop together with them!It has laid a solid foundation for enterprises to compete on the international stage.the company has won the trust and praise from the customers all over the world for years.
Looking at the world and advancing with the times, we focus on the details and refine the quality. We gather bits and pieces to chase the future. Fangding Technology uses the passion of innovation to ignite the development of high-end technology enterprises of China.

2.Workshop & Packing & Shipment

Glass Processing Machine Laminating Machinery Price with Four-Layer

Glass Processing Machine Laminating Machinery Price with Four-Layer
Glass Processing Machine Laminating Machinery Price with Four-Layer

We make strict Quality testing before packing by professional staff and engineer.

The machine packed with standard package, will be fixed firmly in the container.

3.Exibition

Glass Processing Machine Laminating Machinery Price with Four-Layer


Ce Certified Safety Glass Laminating Machine for Architectural Decoration

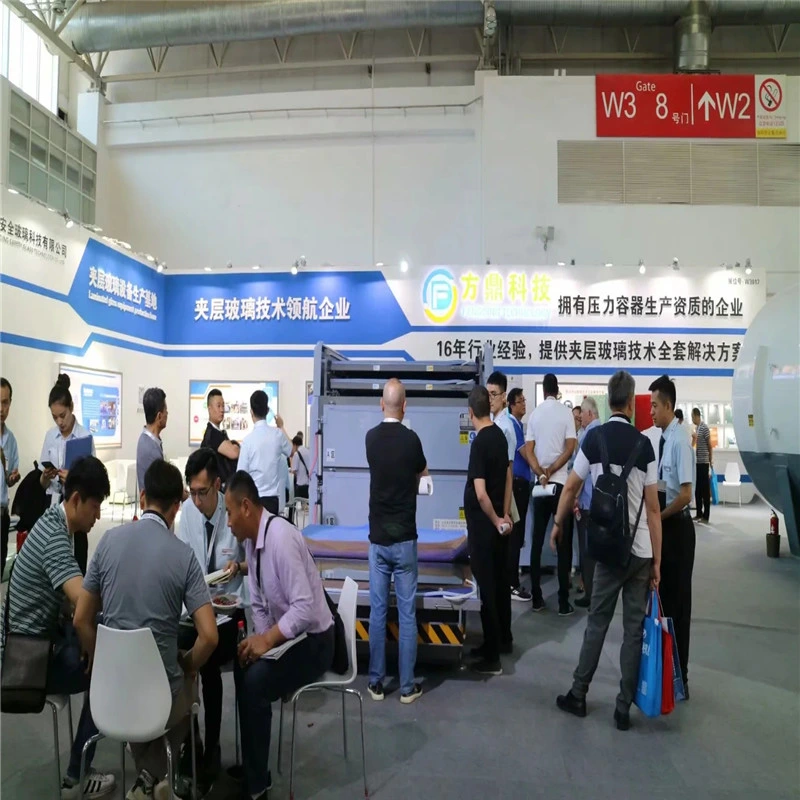

Fangding attend large exhibitions both domestic and abroad every year!

We always make laminated glass in the glass fair, tempered laminated glass and bending laminated glass can be finished in one step.


III. Advantages

Glass Processing Machine Laminating Machinery Price with Four-Layer

PLC control system

1.Using PLC control system, all programs are completed automatically.

2.The heating time and temperature technology are adjusted automatically according to the thickness of the glass, reducing errors.

3.Lightning protection and voltage regulation device, enable 220V - 440V 3-phase power supply.

Heating system

1.Heating element adopts 304 stainless steel heating tube.

2.Carpet heating mode is adopted, the upper and lower synchronizing heat dissipation, acting on the surrounding of the glass, which makes sure the temperature in the
furnace rapid and uniform rise.

3. Strong forced convection with the turbo blower ensures the temperature difference in the furnace not exceed 5 degrees.

Vacuum system

1.Adopt German technology to improve the high temperature vacuum pump, vacuum level up to -0.09--- -0.098mpa.

2. The vacuum with oil filter and air filter can avoid the moisture mixed with oil.

3.The vacuum pump equipped with vacuum buffer tank will keep vacuum for 24 hours, even when suddenly electricity interrupt,the vacuum will be kept also.

4.High temperature resistance, high tear resistance silicone bag, the raw material imported from USA, 3mm thickness, stackable glass thickness reaches to 40mm. Can be used for 4000-5000 times.

Silicone bag

1. Tthe raw materials are imported from overseas ,this is a kind of high tear resistant and high temperature resistant silicon bag with better seal and longer service life.

2. Each silicone bag has 2pcs of Teflon meshes to protect silicone bag from being broken by glass.


Automatic hydraulic lifting platform.

1. The lifting platform adopts the elevator lifting mode, which can reach any floor. Just select the specific layer number of the touch screen and press the button, in this way, we improve the utilization rate of the equipment.

2. The width of the table is 1800mm instead of
1355mm, more reliable and much more loading capacity.


IV. APPLICATION

The processed products mainly apply to outdoor architectural and indoor decoration glass, including windows and doors, glass curtain wall, stair handrail, green house, jewelry counter, glass partition, shower room, LED, PDLC smart glass and bullet-proof glass, etc.

Ce Certified Safety Glass Laminating Machine for Architectural Decoration

FAQ:

Q: Could your machines laminate bent tempered glass?

Re: Yes. Our machines can laminate large-size bent tempered glass in one step, which is very easy to operate. This is our unique advantage.

Q: How many temperature stages your machines can set?

Re: In order to ensure safety, efficiency and yield, we generally set five sections from low temperature to high temperature.

Q: When will your machine ready for delivery after our prepayment?

Re: Normally within in 30 days after receiving prepayment.

Q: What about the terms of payment?

Re: Normally 30% prepayment, 70% before shipment by T/T. L/C and other terms are also available.

Q: Does your machine have any certifications?

Re: Yes, we do. Our machine have got CE certificate of European union, ISO9001 management system certificate. TUV certificate of Germany, PC certificate for Saudi Arabia, CSA certificate of Canada and so on. We can also meet your other requirements.

Q: Could the laminated glass used for exterior?

Re: Yes. The laminated glass with super clear EVA can be totally used for exterior.

Q: How to operate the machine? Is it difficult?

Re: No, our machine is very easy to operate. The machine will work automatically after you setting the parameters through the PLC touch screen. We send you operating manual with the machine, we also have video for operation for your reference. If necessary, our engineers can go to your factory to install and commission, and teach you the production methods and operation skills
