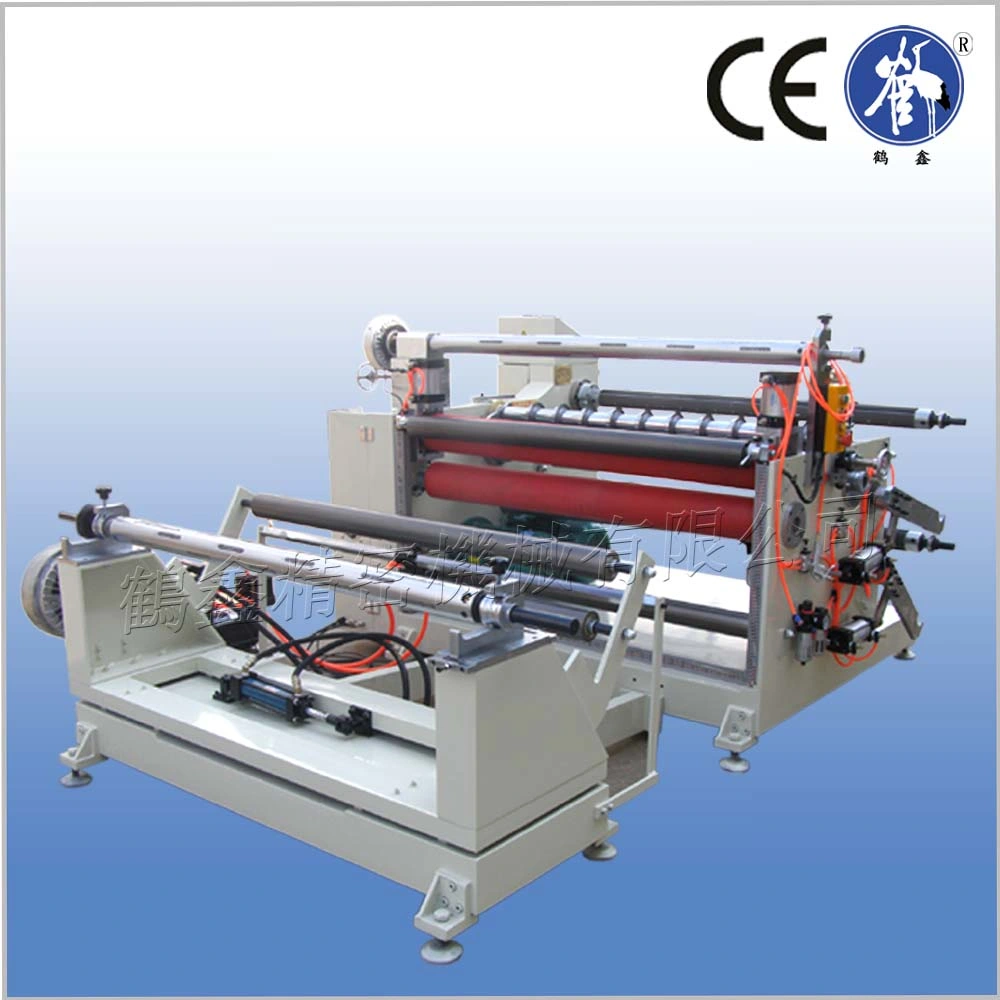

Heat Insulation Foam Rolling Slitting Laminating Machine
Main Technical Parameter
Features:
1. The max width: 320mm
2. The minimum slitting width: 7-15mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 70m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 20years
Charatertistics and Functions:
1. This machine is applicable to slit the narrow scope paper.
2. It can automatically meter, set length, stop, winding is controlled by photoelectric eyes.
3. Compact structure, fast speed, high efficiency, accurate slitting, easy and steady operation.
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
After-service
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
Main Technical ParameterSlitting Speed | 80m/min |
Max. Web Width | 1600mm |
Max. Putting Diameter 800 | 500mm |
Max. Winding Diameter | 450mm |
Precision Of Slitting | ±0.10 |
Power Of The Host Machine | 6KW |
Diameters (LxWxH) | 2400*2300*1600mm |
Machine Weight | About 400kg |
Features:
1. The max width: 320mm
2. The minimum slitting width: 7-15mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 70m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 20years
Charatertistics and Functions:
1. This machine is applicable to slit the narrow scope paper.
2. It can automatically meter, set length, stop, winding is controlled by photoelectric eyes.
3. Compact structure, fast speed, high efficiency, accurate slitting, easy and steady operation.
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
After-service
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
| Configuration list | ||
| Model:HX-1300FQ | Micrcomputer slitting machne | |
| Item | Description | Qty |
| Unwinding department | magnetic controller | 2 set |
| pneumatic test | 1 set | |
| hydraulic rectify | 1 set | |
| shaft 3" | 1 set | |
| Laminating department | air shafts | 2 sets |
| Guiding department | guiding shafts | 10 sets |
| Feeing department | rubber roll | 2 sets |
| air cylinder | 2 sets | |
| Cutting department | uppper circle knife | 10sets |
| Rectification department | electriceyes | 2 sets |
| meter counter | 1 set | |
| Rewinding department | air shafts 3" inch | 2 sets |
| manual cluthes | 2 sets | |
| magnetic controller | 2set | |
| Exhaust department | fan | 1 set |
| motor | 1 set | |
| PLC ontrol department | touch screen | 1 set |
| no. counter | 1 set | |
| meter counter | 1 set | |
| Safty department | emergency switch | |
| guard shield | 1 set | |
| Lubrication department | two mechanical movements parts | 2 series |
| Tensile control department | manual control ajustment | 1 set |
| Cooling department | fans | 2 sets |
| Circuitry department | sevro motor | 1 set |
