Product Description

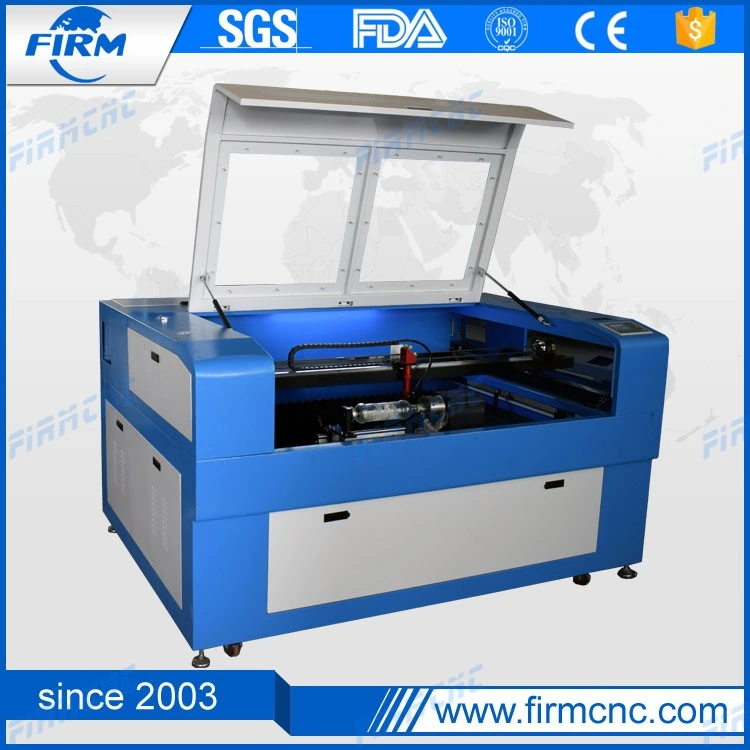

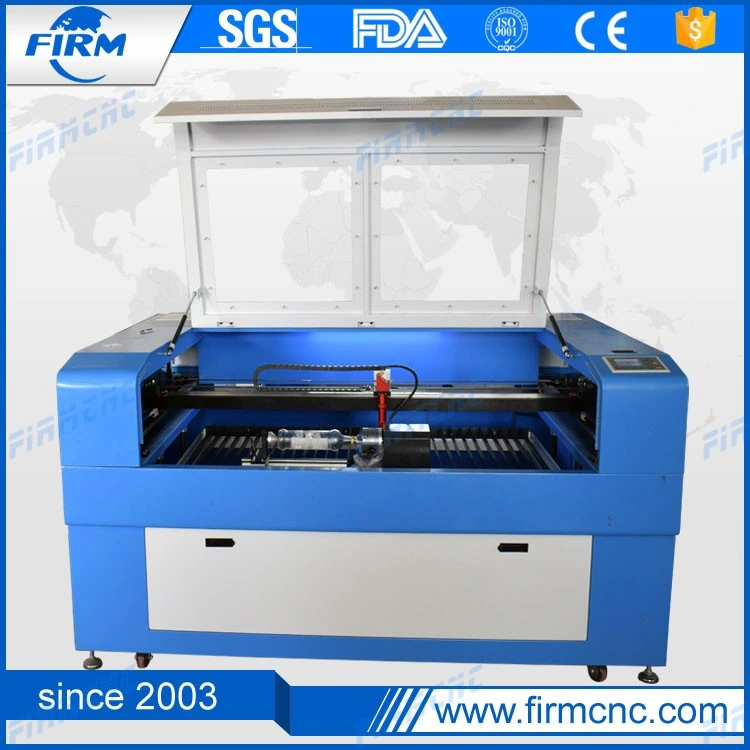

MDF PVC Leather Acrylic Paper 3D Laser Engraving Machine Price
Available Materials of 3d laser engraving machine
1. Advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting,
rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving,
Gum engraving, EVA materials engraving, paper engraving and cutting.
2. Wood material: wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.
3. Garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving,
jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.
Features of 3d laser engraving machine
1.New design, High quality with competitive price.
2.Red light positioning, help find the work point, protect workers and improve work efficiency.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Special Front and back running-through design, the unique door for the limitless engraved materials through.
6. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display,
which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube,
Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision,
engrave 1×1mm little English character perfect.
10. Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
11. Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.
Technical specification of 3d laser engraving machine
Main parts of 3d laser engraving machine
Ruida control panel (optional Leetro control)
RECI co2 laser tube
Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser machine appliances.
Other type laser machines for your reference
# Standard co2 laser machine
# Fabric Leather laser cutting machine
# Mini laser machine
# FMJ1325 laser engraving cutting machine
# Metal laser cutting machine
Perfect afterafter Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
FAQ
1.How to choose a suitable model ? processing materials? max cutting thickness?
# You just need to tell me your working area, such as lenght, width, then I can recommend suitable model for you.
metal laser cutting machine is mainly used to pocessing metal, stainless steel materials, standard co2 laser machine is mainly processing nonmetal materials.
such as wood, plywood, acrylic, board, MDF, plastic etc
2.Do you have operation manual and working video?
# Yes, we have. after confirm which machine do you need, then working video are shown for you.
3.Does your company can processing my samples?
# Yes, we can.
4.If I bought machine, but don't know how to operation, what I can do?
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-13954117091
Available Materials of 3d laser engraving machine
1. Advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting,
rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving,
Gum engraving, EVA materials engraving, paper engraving and cutting.
2. Wood material: wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.
3. Garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving,
jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.
Features of 3d laser engraving machine
1.New design, High quality with competitive price.
2.Red light positioning, help find the work point, protect workers and improve work efficiency.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Special Front and back running-through design, the unique door for the limitless engraved materials through.
6. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display,
which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube,
Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision,
engrave 1×1mm little English character perfect.
10. Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
11. Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.
Technical specification of 3d laser engraving machine
| Model | FMJ6090 | |||
| Working area | 900*600mm | |||
| Laser tube power | 60W 80W 100W 120W 130W 150W | |||
| Laser Type | CO2 sealed laser tube | |||
| Engraving Speed | 0-64000mm/min | |||
| Cutting Speed | 0-36000mm/min | |||
| Resetting positioning accuracy | ≤±0.01mm | |||
| Laser Output | 1-100% software setting | |||
| Cooling mode | Circulating-water-cooling and protection system | |||
| Machine control and drive | Speedy DSP controlling, stepper motor | |||
| Cutting Platform | knife-strip platform | |||
| Min. shaping character | Character2.0mm×2.0mm,English1.0mm×1.0mm | |||
| Power Supply | AC220V 50HZ | |||
| Operating system | DSP off-line control system | |||
| Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc. | |||
| Operating Temperature | 5°C-40°C | |||
| Operating Humidity | 5-95%(Free of Condensed Water) | |||
| Compatible Software | CorelDraw ,AutoCAD transmit directly | |||
| Optional Spare Parts | Rotary system, Industrial Chiller, Infrared Locating System, Laser Tube, Up-down clump | |||
| Recommended Spare Parts | Laser Tube | |||
Main parts of 3d laser engraving machine
Ruida control panel (optional Leetro control)
RECI co2 laser tube
Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser machine appliances.
Other type laser machines for your reference
# Standard co2 laser machine
# Fabric Leather laser cutting machine
# Mini laser machine
# FMJ1325 laser engraving cutting machine
# Metal laser cutting machine
Perfect afterafter Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
FAQ
1.How to choose a suitable model ? processing materials? max cutting thickness?
# You just need to tell me your working area, such as lenght, width, then I can recommend suitable model for you.
metal laser cutting machine is mainly used to pocessing metal, stainless steel materials, standard co2 laser machine is mainly processing nonmetal materials.
such as wood, plywood, acrylic, board, MDF, plastic etc
2.Do you have operation manual and working video?
# Yes, we have. after confirm which machine do you need, then working video are shown for you.
3.Does your company can processing my samples?
# Yes, we can.
4.If I bought machine, but don't know how to operation, what I can do?
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
