Pe Slitter Rewinder
Funcional characteristics:
Electric laminating ue and machine complex for the sticking of material without base glue and other materials.
Automatic Slitter Laminator Machine for Screen Protective Film and Paper Foil
Magnetic powder brake controlling over the unreeling tension, frequency-change stepless speed regulation,
And magnetic powder brake's constant torque controlling over the winding tension, e.
And therefore, it is fast in lamination speed and smiple to operate, hence a necessary equipment matching the label printing machine
Automatic Slitter Laminator Machine for Screen Protective Film and Paper Foil
Purpose:
It is applicable for the laminating and slitting tooling of industrial adhesive tape, cellophane tape, protective film,
Copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
This mahcine is widely used in the industries of Printing, Packing, Electronics, Leather and Clothes making, Plastics, etc.
Funcional characteristics:
Electric laminating ue and machine complex for the sticking of material without base glue and other materials.
Automatic Slitter Laminator Machine for Screen Protective Film and Paper Foil
Magnetic powder brake controlling over the unreeling tension, frequency-change stepless speed regulation,
And magnetic powder brake's constant torque controlling over the winding tension, e.
And therefore, it is fast in lamination speed and smiple to operate, hence a necessary equipment matching the label printing machine
Automatic Slitter Laminator Machine for Screen Protective Film and Paper Foil
Purpose:
It is applicable for the laminating and slitting tooling of industrial adhesive tape, cellophane tape, protective film,
Copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
This mahcine is widely used in the industries of Printing, Packing, Electronics, Leather and Clothes making, Plastics, etc.
| Model | 650 multifunction slitting machine |
| Max Feeding Width ( mm ) | 650 |
| Main Engine Power ( KW ) | 2.2 |
| Speed (M/M ) | 80 |
| Size ( mm ) | 2400*1700*1300 |
| Weight ( KG ) | 1000 |
| Rewinding Diameter (mm ) | 600 |
| Winding Diameter ( mm ) | 450 |
| Precision ( mm ) | ±0.10 |
| Power | 220V 50Hz |
| Remark:We offer 12 month after sale service , wear and tear items excluded | ||||
| Delivery time : 5 days after received the deposit . | ||||
| Payment terms: 100% paid off before shipment | ||||
| standard machine can be delivery within 7 working days | ||||
| have 3 standard machine in stock now | ||||

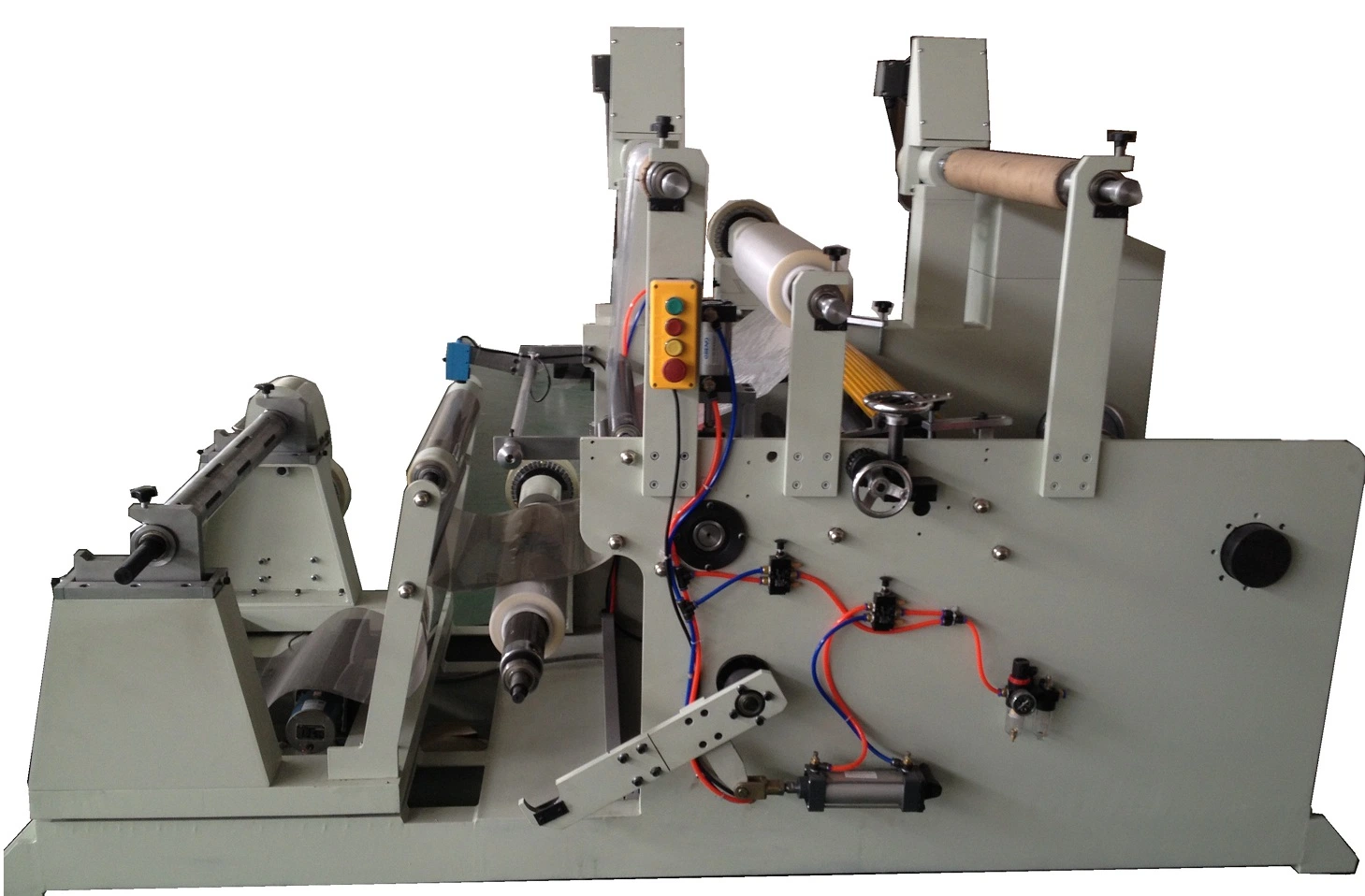

| Machine Picture and configuration list as below | ||||
| 2, Feeding Device | ||||
| Feeding Air Expansion Shaft (3"Pad Shaft) 2 Sets | ||||
| magnetic powder brake 25N 1 Set | ||||
| Film release Magnetic Powder Brake 25N 1 Set | ||||
| Feeding Tension Control System 2 Sets | ||||
| Correction System 1 set | ||||
| 3, Renewal Material Laminating Part : | ||||
| Upper Laminating COTS Dia.80(PU) 1 Set | ||||
| Under Laminating COTS Dia.80(PU) 1 Set | ||||
| Aluminum guide roller(hard Oxygen surface treatment) 1 Set | ||||
| Pressure roller pneumatic type top and bottom system adjustable : 1 Set | ||||
| electronic counter 1 Set | ||||
| Film Release tensioning adjustable system | ||||
| 4. Reeling end | ||||
| Receiving Flatulence axis(3″Pad shaft) 2 Sets | ||||
| magnetic powder clutch 25N 2 Sets | ||||
| he receiving tension control system 2 Sets | ||||
| Main electrical machine (double motor) 1 Set | ||||
| Main Power inverter 1 Set | ||||
| Winding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set | ||||
| 5. Operator control box 1 Set | ||||
| 6.Electric control panel 1 Set | ||||
