Product Description
| Conductive Powder Coatings This product is composed of conductive resin curing agent, conductive pigment additive, conductive filler, etc. Besides all the anticorrosive and decorative functions of ordinary powder, it also has excellent antistatic properties. Applicable to household appliances, metal furniture and office file cabinet, lighting equipment, computer shell, distribution cabinet, water heater and radiator, spare parts and toys, etc. | ||||
| physical property | proportion | 1.20-1.70g/cm³,It varies in color and luster. | ||
| granularity | 0-100umUniform distribution,Average particle size30-40um | |||
| Mobility | 120-140 | |||
| Performance Index of Coating Film | performance | Testing standard | detection result | |
| Gloss 60 degrees | GB/T9754-88 | All gloss less than 100% | ||
| impact test | ISO6272 | GB/T1723-1993 | 50cm/kg | |
| Cupping test | ISO1520 | GB/T9753-1988 | 6-9mm | |
| adhesion | ISO2409 | GB/T9286-1998 | 0-1 | |
| Bending test | ISO1519 | GB/T6742-1986 | 2mm | |
| Pencil hardness | ASTMD3363 | GB/T6739-1996 | 1H-2H | |
| Poached | Distilled water at 96-100 C for 2 hours | No colour, no blister | ||
| Acid resistance | 5%H2SO4 | 1 years | No colour, no blister | |
| 48%HCL | 1 months | |||
| 5%HAC | 1 years | |||
| 5%H3PO4 | 1 years | |||
| Alkali resistance | 5%NaOH | 30Days | No colour, no blister | |
| 5%NaCO3 | ||||
| Solvent resistance | acetone | Brush 50 times | No colour, no blister | |
| xylene | ||||
| Butanone | ||||
| gasoline | ||||
| alcohol | ||||
| ethyl acetate | ||||
| Pinhole thickness | Physical properties of 60-100um pinhole-free steel: (all tests were carried out with 0.6mm deoiling phosphating steel plate and 50-70um film thickness.) | |||
| Salt fog resistance | GB1771-91 >500h | No change, the corrosion width of the sheet at the delimitation area is not more than 2 mm. | ||
| Damp heat resistance | GB1740-79 >1000h | Slight loss of light | ||
| Construction condition | Curing conditions | 200ºC/15"Or180ºC/20 | ||
| Pre-processing | Phosphating treatment of steel and chromizing treatment of aluminium | |||
| Description: The inspection requirements for pretreatment are checked every two hours, and the test method refers to the requirements of drug suppliers. | ||||
| Spray | Corona electrostatic spraying, friction electrostatic spraying, such as the use of other spraying methods (requirements must be made first). | |||
| Theoretical coverage | Coating thickness: between 40 and 150 microns. It is recommended that the film thickness be 50 to 70 microns. | |||
| Other matters | Packaging and transportation | 20kg/box, lined with polyethylene plastic bags, non-hazardous goods, can be transported in various ways, but should avoid direct sunlight, damp and heat, avoid contact with chemical substances. | ||
| Storage requirements | Store in a ventilated, dry and clean room at 30 C. Keep away from fire sources, heating, direct sunlight, and stack in the open air is strictly prohibited. Under these conditions, the powder can be stored stably for 6 months. Over the storage period, it can be re-examined, and if the results meet the requirements, it can still be used. All containers must be re-packaged and returned to the original packaging after use. | |||
| Health safety | Containers should be kept sealed and not close to fire or heating. Avoid inhaling powder. Food and smoking are prohibited in storage areas. The builder should wear anti-static shoes and keep grounding. Coatings attached to the skin can be washed with soap. | |||
Application scope

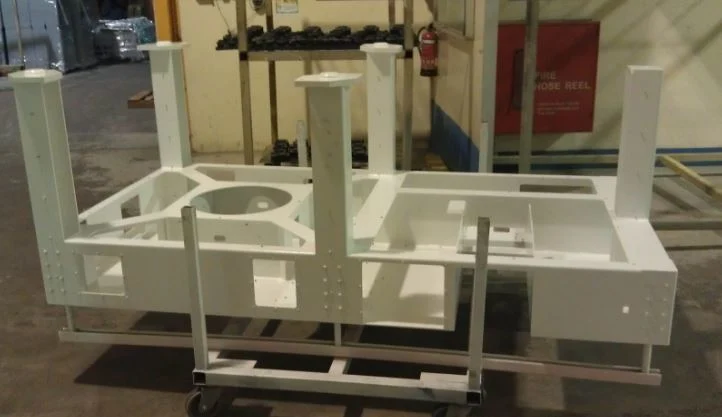

Product process pictures
Company information
| Jiangsu Changsong Technology Development CO., Ltd |
| Business Type:Manufacturer/Factory |
| Year established:1991 |
| Main Markets: Asia Pacific, Middle East, Europe, south & north America |
| Advantage:our factory is close to Shanghai port,convenient transportation;trade assurance supplier; excellent research and development group;professional testing facilities; reliable quality and good service and reasonable price |
Purchase Note:
| 1.M.O.Q : |
| The minimum order is2000kg ,each color ≥ 100kg |
| 2.Colors: |
| RAL color :we usually use RAL colors that is widely used in paint industry and easily find in market |
| Custom color : Color matching is available , if you have colors model ,please send to us for matching . |
| 3.Prices: |
| Prices depend on the colors and using environment ,for prices please tell us the colors and using environment (indoor use or outdoor use). |
| 4.Time of delivery : |
| Production will take about 5-8 days after receipt of prepayment,this is subject to the quantity . |
| 5.Payment : |
| Prefer T/T IN ADVANCE PAYMENT; 30% T/T prepayment , 70% T/T before shipment (or against BL copy) or LC at sight . |
| 6.Samples: |
| 1kg powder sample is available for each color for your testing. |
| Sample is free of cost,but if you pay for the air freight we will highly appreciate. |
