cell manufacturing machine solar pv production line pvb laminating machine
The entire stainless steel chamber avoids welding deformation of the stainless steel and the general steel. High quality welding of argon reduces vacuum system leaking rate. The use of calibration thermo-couple gauge made no false vacuum reading. Strengthened design and the high smoothness avoid the laminated fragment and shift.
Hot working design of the computer auxiliary reduces the temperature unevenness on controlling of the false muti-spots. The close heat conduction coupling avoids temperature fluctuation on the laminated process. Optimized PID control improves the accuracy of temperature control. The fabric strengthened offset plate extends the using time and reduces the working costs. The program-controlled design levels up the flexibility.
Laminating of monocrystalline silicone, poly-silicone and amorphous silicone solar modules.
1, Oil Heating;
2, PDI artificial temperature control and multi-point;
3, Temperature monitoring;
4, Siemens PLC programmable controller, Power trip, light grating protection, cover self-locking, operation monitoring, automatic alarm device;
5, Laminate as sections and different speed, adjust pressure as sections;
6, Flat worktable, more convenient for the module in and out;
7, Heating plate has good thermal conductivity and higher thermal efficiency;
8, Prevent-rubber-folded design can extend the service life, improve the flatness of pressure;
9, Flange structure, more convenient for changing the rubber.
Laminate Length * Width
2200mm x 3600mm
Unevenness of the worktable
Max. Laminate Thickness
Press of compressed air
Work vacuum degree
Controllable temperature precise
Temperature control mode
SD320 Heat by oil
380V 3 phase / 5wire
Air discharge speed
Can adjust continuously within 0~50L/S
±1.5ºC Multi-point temperature control
12000mm ×3240mm ×1580mm
ARGUS Turnkey Solution for Automatic Solar Panel Production Line

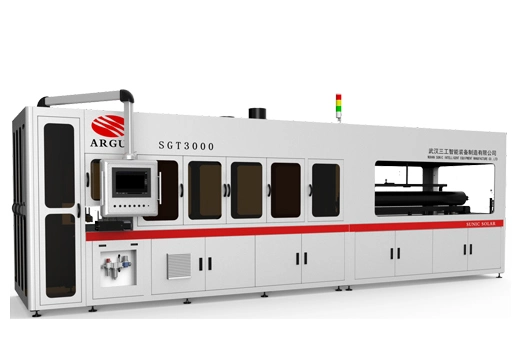

ARGUS Automatic Solar Cell Tabber Stringer Soldering Machine
