*Product description
*Specification
*Applications
1. Soft cover books
2. Dust jackets
3. Custom binders
4. High-end presentation folders
5. Packaging Products
6. Display graphics
7. Coating on books and magazine; Catalogs;
8. Wedding photograph; Photo album.
9. Much more
*Advantages
1. Easier operation during laminating,more efficient
2. No bubble, wrinkle, or desquamates
3. Protect from harmful substances and waterproof
4. None solvent pollutions,environmental-friendly
5. Protect the printing color from change,keep the printing for a long time
6. Good for UV varnishing and hot stamping
7. Save mixing of adhesive cost,no need of coating and drying processes
8. Outstanding function and effect
*Package
1. TWO option:Rolling package with cartons OR with bubble wrap;
--For 1'' core, 6 rolls per carton;
--For 3'' core, 1 roll per carton;
--For 3'' core, 1 roll with bubble wrap;
2. Packed films are secured on pallets(lastic pallets or wooden pallets, as customized);
3. All pallets are well packed with packing belts and well wrapped with stretch film.
4. One 20ft container can pack around 10pallets,10-12 Tons .
5. package could be as customer request.
*Process Parameter
*Storage
1. Must be stored in a dry, well ventilated warehouse. To avoid direct sunlight, DON'T stored in the open air.
2. Must be away from fire and heat sources.
3. DON'T store or transport together with chemicals and inflammables.
4. Warehouse must be equipped with extinguishers or fire-fighting device.
5. Water, carbon dioxide, dry powder can be used as extinguishers for the product.
*Company information
Guangdong EKO Film Manufacture Co.,Ltd is one of the largest thermal lamination film manufactures in China,
we engaged in developing and producing new types of environmental friendly laminating films for more than 15 years.
our main products:BOPP/PET thermal laminating films,digital films,advertising inject films,PET films,protective films...for
printing and package field.products are exported worldwide.
We abtained the certificate of ISO9001:2008 and SGS,as well as other certificates in printing and package industry.
strict quality control,rich experience in this field,concentrate in innovation make us win a good reputation from customers.

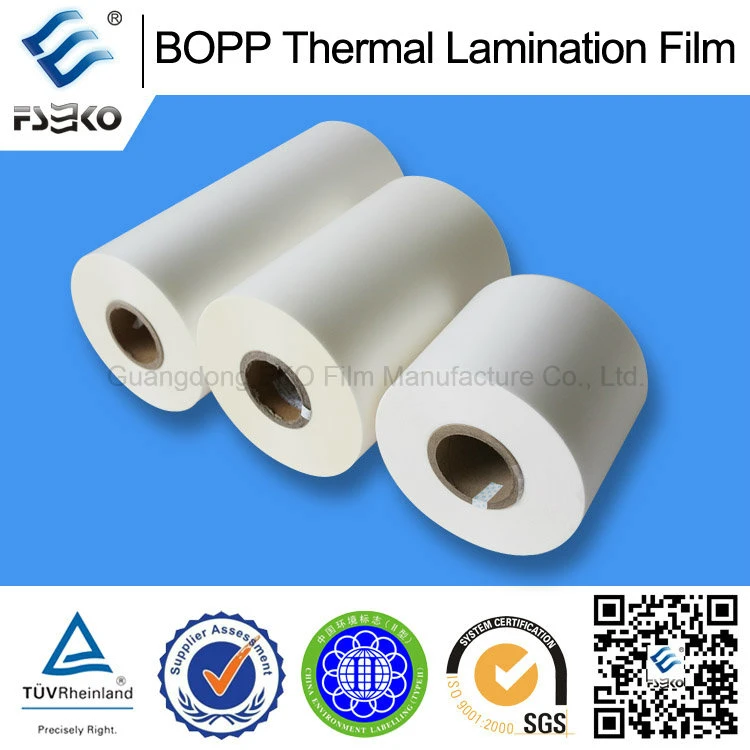

BOPP Thermal Lamination Film is consist of BOPP film + EVA glue adhesive.
Through using extrusion coating process to combine this two layers.
In the final film one side has properties of BOPP film and
The other side becomes heat sensitive surface used for dry lamination.
*Specification
*Applications
1. Soft cover books
2. Dust jackets
3. Custom binders
4. High-end presentation folders
5. Packaging Products
6. Display graphics
7. Coating on books and magazine; Catalogs;
8. Wedding photograph; Photo album.
9. Much more
*Advantages
1. Easier operation during laminating,more efficient
2. No bubble, wrinkle, or desquamates
3. Protect from harmful substances and waterproof
4. None solvent pollutions,environmental-friendly
5. Protect the printing color from change,keep the printing for a long time
6. Good for UV varnishing and hot stamping
7. Save mixing of adhesive cost,no need of coating and drying processes
8. Outstanding function and effect
*Package
1. TWO option:Rolling package with cartons OR with bubble wrap;
--For 1'' core, 6 rolls per carton;
--For 3'' core, 1 roll per carton;
--For 3'' core, 1 roll with bubble wrap;
2. Packed films are secured on pallets(lastic pallets or wooden pallets, as customized);
3. All pallets are well packed with packing belts and well wrapped with stretch film.
4. One 20ft container can pack around 10pallets,10-12 Tons .
5. package could be as customer request.
*Process Parameter
Equipment | Dry and wet film laminator | |
Normal | Special | |
Temperature | 85~100 C | 100~110 C |
Roller Pressure | 8~15 Mpa | 16~25 Mpa |
Speep | 5~30 M/min | 5~10 M/min |
Remarks | Special laminations refer to those with which is thick ink, dark color, much moisture and large size paper |
*Storage
1. Must be stored in a dry, well ventilated warehouse. To avoid direct sunlight, DON'T stored in the open air.
2. Must be away from fire and heat sources.
3. DON'T store or transport together with chemicals and inflammables.
4. Warehouse must be equipped with extinguishers or fire-fighting device.
5. Water, carbon dioxide, dry powder can be used as extinguishers for the product.
*Company information
Guangdong EKO Film Manufacture Co.,Ltd is one of the largest thermal lamination film manufactures in China,
we engaged in developing and producing new types of environmental friendly laminating films for more than 15 years.
our main products:BOPP/PET thermal laminating films,digital films,advertising inject films,PET films,protective films...for
printing and package field.products are exported worldwide.
We abtained the certificate of ISO9001:2008 and SGS,as well as other certificates in printing and package industry.
strict quality control,rich experience in this field,concentrate in innovation make us win a good reputation from customers.
