world best selling products eva fabric laminating machine with CE certificate Seimens PLC



    Best Selling Products EVA Fabric Laminating Machine with Ce Certificate Seimens PLC



    Equipment Performance
    The entire stainless steel chamber avoids welding deformation of the stainless steel and the general steel. High quality welding of argon reduces vacuum system leaking rate. The use of calibration thermo-couple gauge made no false vacuum reading. Strengthened design and the high smoothness avoid the laminated fragment and shift.



    Hot working design of the computer auxiliary reduces the temperature unevenness on controlling of the false muti-spots. The close heat conduction coupling avoids temperature fluctuation on the laminated process. Optimized PID control improves the accuracy of temperature control. The fabric strengthened offset plate extends the using time and reduces the working costs. The program-controlled design levels up the flexibility.



    Applicable Field
    Laminating of monocrystalline silicone, poly-silicone and amorphous silicone solar modules.



    Technical features
    1, Oil Heating;
    2, PDI artificial temperature control and multi-point;
    3, Temperature monitoring;
    4, Siemens PLC programmable controller, Power trip, light grating protection, cover self-locking, operation monitoring, automatic alarm device;
    5, Laminate as sections and different speed, adjust pressure as sections;
    6, Flat worktable, more convenient for the module in and out;
    7, Heating plate has good thermal conductivity and higher thermal efficiency;
    8, Prevent-rubber-folded design can extend the service life, improve the flatness of pressure;
    9, Flange structure, more convenient for changing the rubber.



    Technical parameters

    Model

    SLT-2236

    Laminate Length * Width

    2200mm x 3600mm

    Pumping speed

    70L/S

    Unevenness of the worktable

    Unevenness≤200μm/m²

    Pumping time

    5~7min

    Laminate time

    about 17~20min.

    Max. Laminate Thickness

    28mm

    Press of compressed air

    0.5~0.8MPa

    Work vacuum degree

    80~20Pa

    Ultimate vacuum

    20 Pa

    Controllable temperature precise

    ≤±0.8ºC
    (at the regulated set temperature value

    Temperature control mode

    PID Control

    Heating mode

    SD320 Heat by oil

    Power supply

    380V 3 phase /  5wire

    Peak power

    75 Kw

    Work power

    35 Kw

    Control mode

    Automatic/ Manual

    Air discharge speed

    Can adjust continuously within 0~50L/S

    Maximum temperature

    180ºC

    Work temperature

    100ºC~160ºC

    Ambient temperature

    0~50ºC

    Temperature uniformity

    ±1.5ºC Multi-point temperature control

    Weight

    18T

    Dimension

    12000mm ×3240mm ×1580mm



     ARGUS Turnkey Solution for Automatic Solar Panel Production Line

    Best Selling Products EVA Fabric Laminating Machine with Ce Certificate Seimens PLC

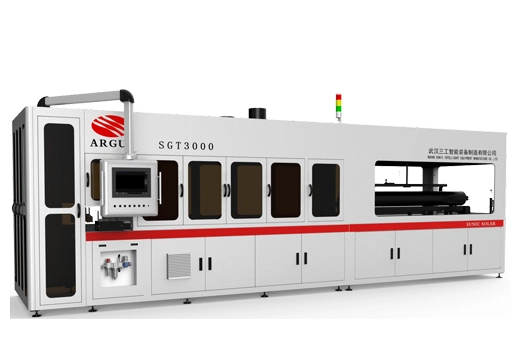

    ARGUS Automatic Solar Cell Tabber Stringer Soldering Machine

    Best Selling Products EVA Fabric Laminating Machine with Ce Certificate Seimens PLC


    ARGUS Automatic Solar Strings Layup Machine

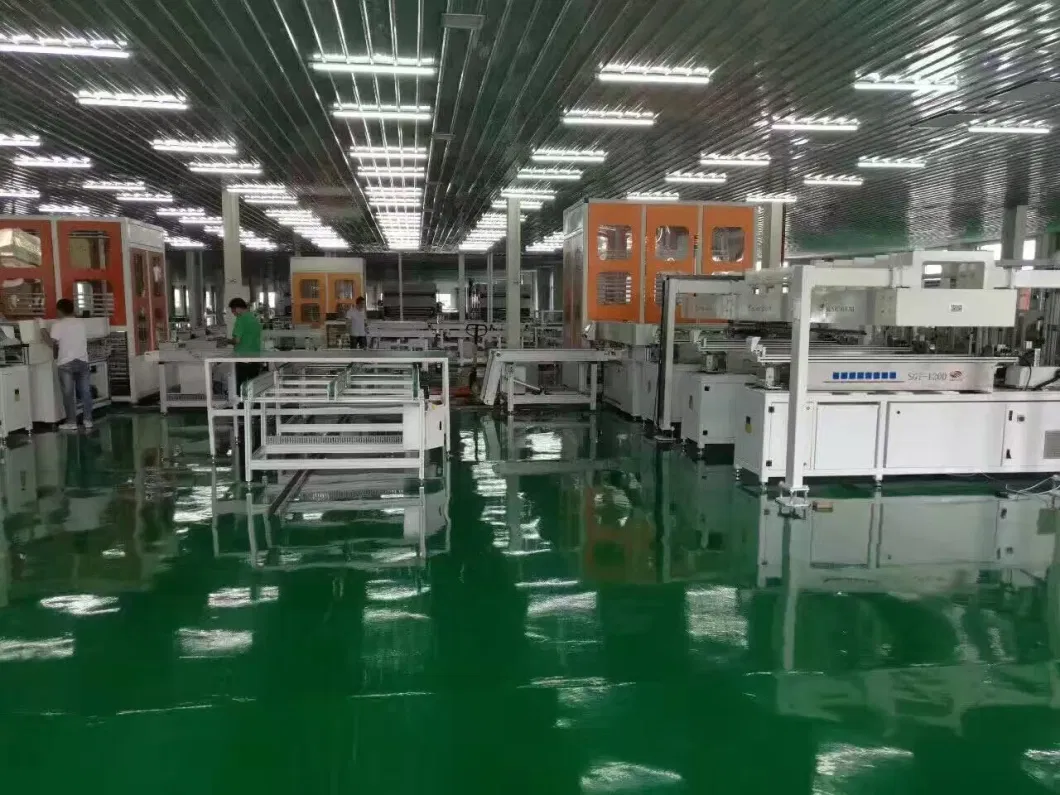

    WE DO SOLAR PANEL PROJECTS AS MANUFACTURER!
