Product Description

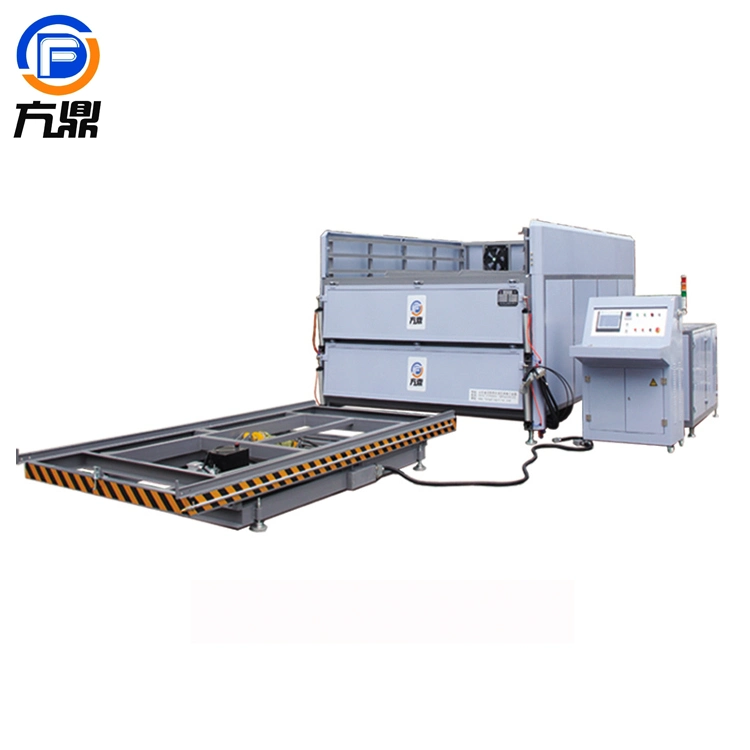

High Output High Efficiency Glass Laminating Machine with EVA Film


Technical parameters

Machine model

FD-J-5-4

Rated power

58KW

Processing glass size

Max. glass size: 2440x3660mm X 4 layer

Max. glass thickness: 40mm

Floor space

L*W: 4520*10500mm

Voltage

220-440V

50-60Hz 3-phase AC

Net Weight

4300KGS

Operation system

Siemens PLC

Working temperature

90 degrees--140 degrees

Efficiency

90-120min/cycle

Max production capacity: 107 Sq.m/cycle


Company Information

1.About us

High Output High Efficiency Glass Laminating Machine with EVA Film

Fangding Technology Co., Ltd is a high-tech enterprise which was founded in October 2003, located in Taoluo industrial park , Donggang district, Rizhao city, covering an area of more than 20,000 square meters, with a registered capital of 100 million yuan,specializing in developing ,manufacturing and selling the laminated glass equipment and the interlayer films,the The main products are EVA laminated glass machine,Heat Soak Furnace, Smart PVB  glass laminating line and EVA,TPU,SGP films.

At present, the company has D1, D2 pressure vessel production license, has obtained the ISO 9001 quality management system certification,the products have obtained the European Union CE certification, Canada CSA certification and Germany TUV certification,it has the independent export permission and successively awarded the high-tech enterprise, gazelle enterprise of Shandong province, famous brand in shandong province, and others more than 30 honorary title.

In the international market, the products has been exported to Asia, Europe, America and other more than 60 countries and regions .Be responsible for the customers and develop together with them!It has laid a solid foundation for enterprises to compete on the international stage.the company has won the trust and praise from the customers all over the world for years.
Looking at the world and advancing with the times, we focus on the details and refine the quality. We gather bits and pieces to chase the future. Fangding Technology uses the passion of innovation to ignite the development of high-end technology enterprises of China.

2.Workshop & Packing & Shipment

High Output High Efficiency Glass Laminating Machine with EVA Film

High Output High Efficiency Glass Laminating Machine with EVA Film
High Output High Efficiency Glass Laminating Machine with EVA Film

We make strict Quality testing before packing by professional staff and engineer.

The machine packed with standard package, will be fixed firmly in the container.

3.Exibition

High Output High Efficiency Glass Laminating Machine with EVA Film


High Output High Efficiency Glass Laminating Machine with EVA Film
Fangding attend large exhibitions both domestic and abroad every year!

We always make laminated glass in the glass fair, tempered laminated glass and bending laminated glass can be finished in one step.


Advantages

High Output High Efficiency Glass Laminating Machine with EVA Film

PLC control system

1.Using PLC control system, all programs are completed automatically.

2.The heating time and temperature technology are adjusted automatically according to the thickness of the glass, reducing errors.

3.Lightning protection and voltage regulation device, enable 220V - 440V 3-phase power supply.

Heating system

1.Heating element adopts 304 stainless steel heating tube.

2.Carpet heating mode is adopted, the upper and lower synchronizing heat dissipation, acting on the surrounding of the glass, which makes sure the temperature in the furnace rapid and uniform rise.

3. Strong forced convection with the turbo blower ensures the temperature difference in the furnace not exceed 5 degrees.

Vacuum system

1.Adopt German technology to improve the high temperature vacuum pump, vacuum level up to -0.09--- -0.098mpa.

2. The vacuum with oil filter and air filter can avoid the moisture mixed with oil.

3.The vacuum pump equipped with vacuum buffer tank will keep vacuum for 24 hours, even when suddenly electricity interrupt,the vacuum will be kept also.

4.High temperature resistance, high tear resistance silicone bag, the raw material imported from USA, 3mm thickness, stackable glass thickness reaches to 40mm. Can be used for 4000-5000 times.

Automatic hydraulic lifting platform.

Using elevator lift mode, can position and lift to each layer accurately, making the process safer and easier.

FAQ:

Q: Could your machines laminate bent tempered glass?

Re: Yes. Our machines can laminate large-size bent tempered glass in one step, which is very easy to operate.

Q: How many stages your machines can set?

Re: Normally we set 3 stages. It can be customized for you to 5 stages if needed.

Q: When will your machine ready for delivery after our prepayment?

Re: Normally within in 30 days after receiving prepayment.

Q: What about the terms of payment?

Re: Normally 30% prepayment, 70% before shipment by T/T. L/C and other terms are also available.

Q: Does your machine have any certifications?

Re: Yes, we do. Our machine have got CE certificate of European union, ISO9001 management system certificate. TUV certificate of Germany, PC certificate for Saudi Arabia, CSA certificate of Canada and so on. We can also meet your other requirements.

Q: Could the laminated glass used for exterior?

Re: Yes. The laminated glass with super clear EVA can be totally used for exterior.

Q: How to operate the machine? Is it difficult?

Re: No, our machine is very easy to operate. The machine will work automatically after you setting the parameters through the PLC touch screen. We send you operating manual with the machine, we also have video for operation for your reference.
